Renault Clio: Boot
To open

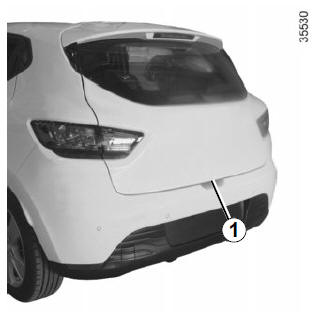

Press button 1 and lift the tailgate.
To close

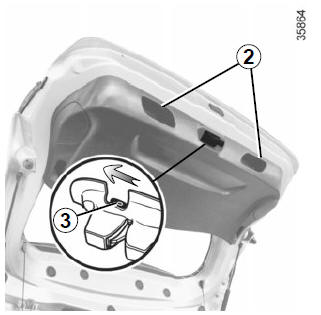

Lower the tailgate using the handles 2 inside the tailgate to help you
Opening the doors manually from the inside
If it is impossible to unlock the tailgate, it can be done manually from inside:
- access the luggage compartment by tilting the rear bench seatback(s),
- insert a pencil or similar object in recess 3 and slide the unit as shown in the illustration;
- push the tailgate to open it.
| Do not place any objects,
especially heavy or hard
objects, on the parcel shelf. These may pose a risk to the vehicle occupants if the driver has to brake suddenly or if the ve |
