Renault Clio: Front side door protective strip: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Mechanisms And Accessories / Exterior Protection / Front side door protective strip: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION

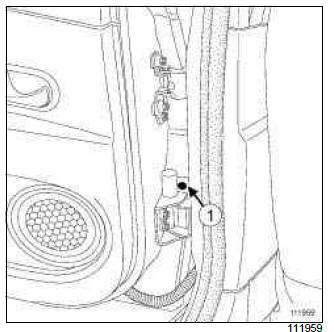

- Unclip the blanking cover (1).
- Remove the bolt.

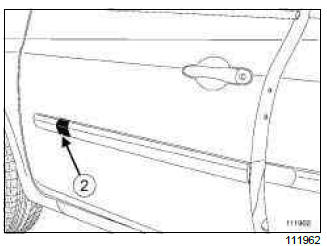

- Remove the side mounted indicator (2) using a small flat screwdriver.
- Disconnect the power supply connector.
II - REMOVAL OPERATION FOR PART CONCERNED

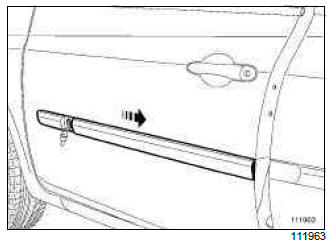

- Slide the door rubbing strip towards the rear of the vehicle.
III - REFITTING OPERATION FOR PART CONCERNED
- Slide the door moulding towards the front of the vehicle.
IV - FINAL OPERATION.
- Refit:
- the protective strip mounting bolt,
- the blanking cover,
- the mounted indicator.
Rear side door protective strip: Removal - Refitting
B85 or K85
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Strip off the adhesive (1).

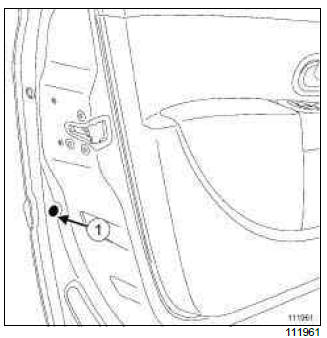

- Remove the bolt.
II - OPERATION FOR REMOVAL OF PART CONCERNED

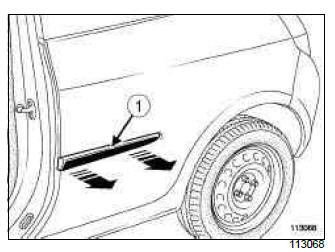

- Slide the door moulding towards the front of the vehicle.
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED

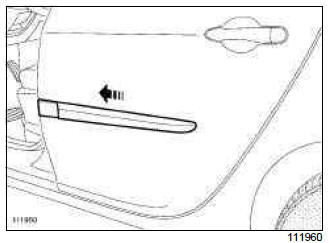

- Slide the door moulding towards rear of the vehicle.
II - FINAL OPERATION.
- Refit:
- the protective strip mounting bolt,
- the adhesives (Part no: 77 01 465 890).
C85 or S85
REMOVAL
OPERATION FOR REMOVAL OF PART CONCERNED
- Unclip the rear wing protective strip (1).
REFITTING
I - REFITTING PREPARATION OPERATION
- Check the condition of the clips and replace them if necessary.
II - REFITTING OPERATION FOR PART CONCERNED
- Clip on the rear wing protective strip.
Roof protection strip: Removal - Refitting
C85 or S85
REMOVAL
Note: It is possible to replace the access flap for mounting the roof rack bars.
OPERATION FOR REMOVAL OF PART CONCERNED

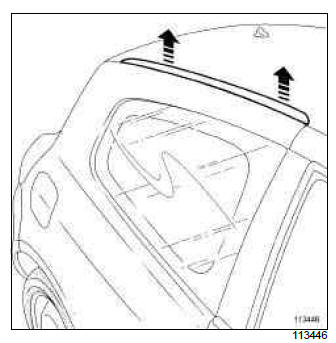

- Carefully unclip the roof protection strip.
REFITTING
I - REMOVAL PREPARATION OPERATION

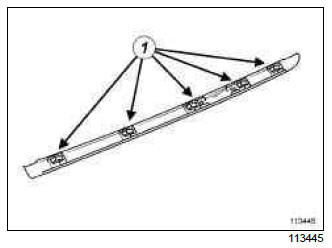

- Check the condition of the clips (1) and replace if necessary.
II - FINAL OPERATION.
- Clip the roof protection strip in position.
