Renault Clio: Rear brake hose: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Chassis / Rear Axle Components / Rear brake hose: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (MR 392, 02A, Lifting equipment).
WARNING
Prepare for brake fluid outflow, to prevent damage to the mechanical parts and bodywork around the braking system.

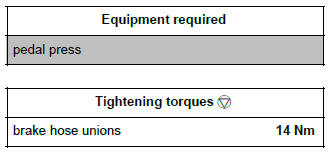

- Fit the pedal press to the brake pedal to limit the outflow of brake fluid.
II - OPERATION FOR REMOVAL OF PART CONCERNED
- Remove:

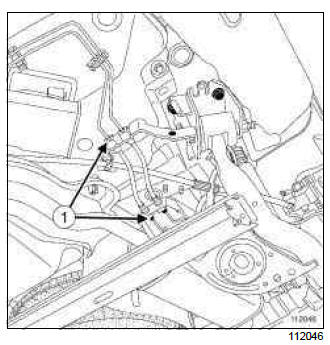

- the unions (1) from the pipe concerned,
- the pipe concerned.
REFITTING
I - REFITTING PREPARATIONS OPERATION
WARNING
Do not twist the brake hose.
Make sure that there is no contact between the brake hose and the surrounding components.
II - REFITTING OPERATION FOR PART CONCERNED
- Refit the hose.
- Torque tighten the brake hose unions (14 Nm).
III - FINAL OPERATION.
- Remove the pedal press from the brake pedal.
- Bleed the brake circuit (see 30A, General information, Braking circuit: Bleed, 30A-4).
- Check the brake fluid level.
