Renault Clio: Rear inner sill upper trim: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Trim And Upholstery / Body Internal Trim / Rear inner sill upper trim: Removal - Refitting
B85
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the complete rear bench seat.

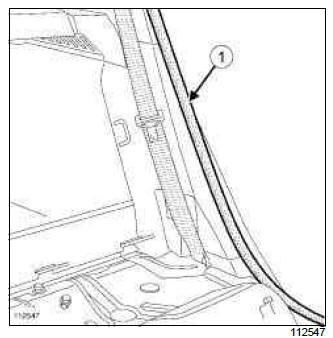

- Partially remove seal (1).
II - OPERATION FOR REMOVAL OF PART CONCERNED
- Remove the trim at (2) and at (3).
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Refit the rear door sill upper trim.
II - FINAL OPERATION

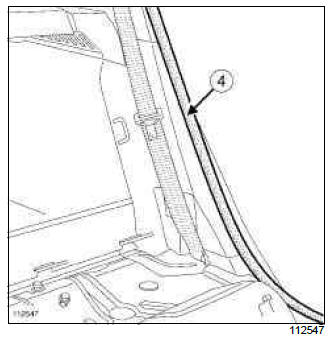

- Refit the seal (4).
- Refit the rear bench seat.
