Renault Clio: Ashtray, cigarette lighter

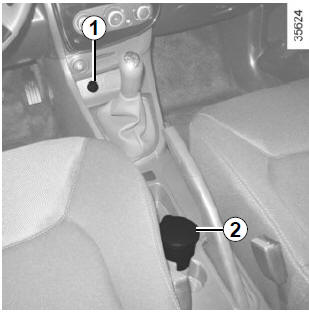

Cigarette lighter 1
With the ignition on, push in the cigarette lighter 1. It will spring back with a click when it is ready. Pull it out to use.
After use, replace it without pushing it all the way in.
Ashtray

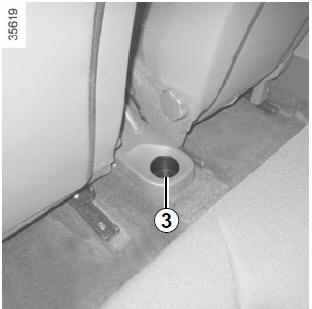

It can be housed in either position 2 or 3.
| If your vehicle is not fitted with a cigar lighter and an ashtray, these can be obtained from an approved Dealer. |
Accessories socket 1
It is provided for connecting accessories approved by our Technical Department with a maximum power of 120 Watts (12V).
| Connect accessories
with a maximum power of
120 Watts only. Fire hazard. |
