Renault Clio: Automatic gearbox

Renault Clio IV (2014-2019) Owners Manual / Driving / Automatic gearbox

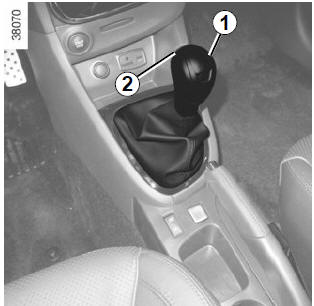

Selector lever 1

P: park
R: reverse
N: Neutral
D: automatic mode
M: manual mode
+: upper gear
–: lower gear
4: displays the gear engaged in manual mode.

Note: Press the button 2 to go from position D or N to R or P.

Operation

With the selection lever 1 in position P, switch on the ignition.

To move out of position P, you must depress the brake pedal before pressing the unlocking button 2.

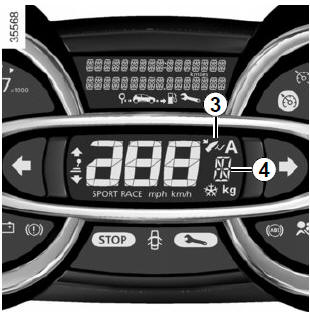

With your foot on the brake pedal (warning light 3 on the display goes out), move the lever out of position P.

Only engage D or R when the vehicle is stopped, with your foot on the brake and the accelerator pedal released.

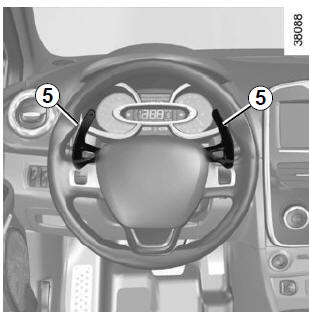

Gear change paddles 5

The paddles 5 enable you to change gear while the gear lever is in ‘manual mode’ position or, if driving, in ‘automatic mode’ position.

P, N and R are not accessible using the paddles.

The display 4 notifies the driver about the current mode and gear.

Driving in automatic mode

Put lever 1 into position D.

In most road conditions you will encounter, you will not need to touch your lever again: the gears will change automatically at the right time and at the most suitable engine speed because the automatic system takes into account the vehicle load and road contour and adjusts itself to the particular driving style you have chosen.

Economical driving

When driving, always leave the lever in position D, keeping the accelerator pedal lightly depressed to ensure automatic gear changes at a lower engine speed.

Accelerating and overtaking

Depress the accelerator pedal firmly and fully (so that it goes beyond the kickdown point).

This will enable you to change down to the optimum gear within the engine range.

Driving in manual mode

With the selector lever in position D, move the lever to the left into the M position.

Shifting the lever or the paddles repeatedly allows you to change gears manually:

• to move down through the gears, push the lever forwards or press the left-hand paddle;
• to move up through the gears, push the lever backwards or press the right-hand paddle.

The gear selected is displayed on the instrument panel.

Special cases

In certain driving conditions (for example, engine protection, operation of the Electronic Stability Programme: the automatic system may change gear automatically.

Likewise, to prevent incorrect manoeuvres, a gear change may be refused by the automatic system: in this case the gear display flashes for a few seconds as a warning.

Special circumstances

• If the bends and road surface do not allow you to stay in automatic mode (e.g. in the mountains), we recommend that you change to manual mode. This will prevent the automatic gearbox from changing gear repeatedly when climbing, and permit engine braking on long descents.

Parking the vehicle

When the vehicle is stopped, move the lever to position P while keeping your foot on the brake pedal: the gearbox is in neutral and the drive wheels are mechanically locked by the driveshaft.

Apply the handbrake.

Operating faults

• when driving, if the “CHECK AUTO GEARBOX ” message appears on the instrument panel, it indicates a fault.

  Contact your approved Dealer as soon as possible;

• when driving, if the message “Gearbox overheating” appears on the instrument panel, stop as soon as possible to let the gearbox cool down and wait for the message to disappear;
• If a vehicle with an automatic gearbox breaks down, refer to the information on “Towing” in Section 5.

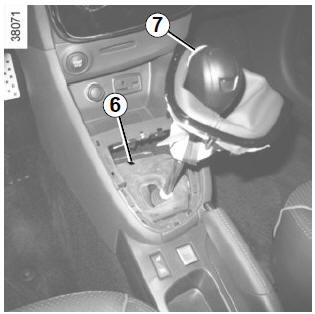

When setting off, if the lever is locked in position P even though you are pressing the brake pedal, the lever can be released manually. To do this, release the base of the lever, then use a tool (rigid rod) in the slot 6 and simultaneously press button 7 to unlock the lever.

Contact an authorised dealer as soon as possible.
