Renault Clio: Front seats

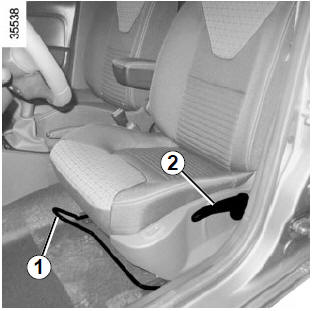

To move the seat forwards or backwards
Lift handle 1 to unlock. Release the handle once the seat is in the correct position and ensure that the seat is locked.
| For safety reasons, carry
out any adjustments when
the vehicle is not being
driven. Nothing should be placed on the floor (area in front of driver) as such objects may slide under the pedal during braking manoeuvres, thus obstructing its use. |
To raise or lower the seat base
Move lever 2 as many times as necessary upwards or downwards.

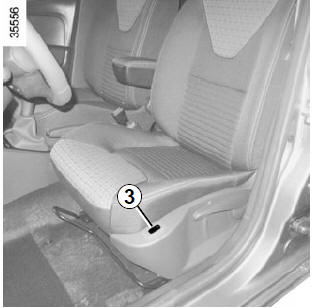

Heated seats
With the ignition switched on, press switch 3 on the required seat. The indicator light in the switch lights up.
The system, which has a thermostat, regulates the heating and deactivates it if necessary.

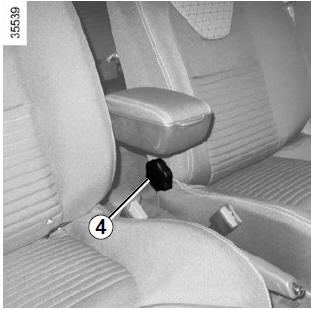

To tilt the seatback
Turn control knob 4 and tilt the seatback to the desired position.
| We would advise you not to recline the seatbacks too far to ensure that the effectiveness of the seat belts is not reduced. |

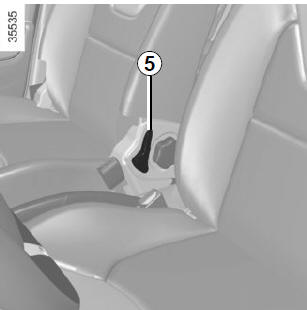

Passenger seat table formation (depending on the vehicle)
Make sure that nothing prevents the seat from moving.
- Move the seat as far back as possible;
- lower the headrest as far as it will go;
- hold the seatback by the top to guide it downwards, and simultaneously activate control 5 and fold the seatback forwards;
- press on the back of the seatback to lock it in place. Make sure you lock the seatback properly.
To reposition the passenger seat
Make sure that nothing prevents the seat from moving.
- Activate control 5 to unlock the seatback;
- Lift the seat back;
- Make sure the seat is correctly locked in position.
| For your safety, attach any transported objects when the seat is in the table position. |
| When the front seat is in
table position, the front passenger
air bag must be disabled
(see information on
“Child safety: activating/deactivating
the front passenger air bag” in
Section 1). Risk of serious injury caused by items resting on the seatback table which may be dislodged when the air bag is deployed. The label (on the dashboard) and the markings (on the windscreen) remind you of these instructions. |

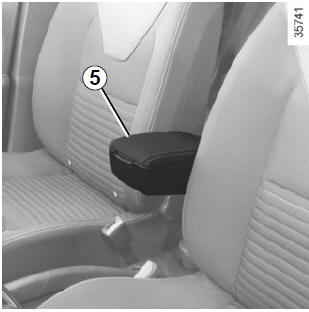

Central armrest 5
To adjust the armrest upwards
Lift armrest to the desired position.
To adjust the armrest downwards
Lift the armrest to the storage position along the seat back, then lower it.

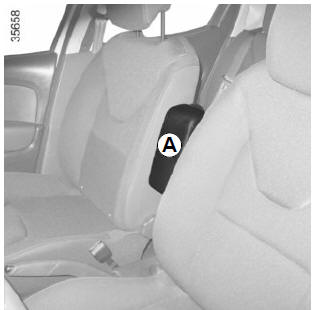

To store away the armrest
Lift the armrest to the storage position A. Check that it is correctly locked.
