Renault Clio: Heating resistors: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Air Conditioning / Heating / Heating resistors: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the centre console (see Centre console: Removal - Refitting) (MR 393, 57A, Interior equipment).

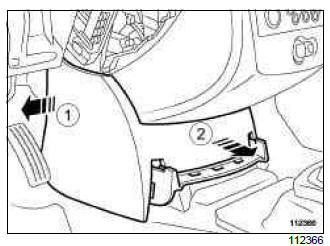

- Unclip the trim at (1) and (2) at the base of the dashboard.
II - OPERATION FOR REMOVAL OF PART CONCERNED

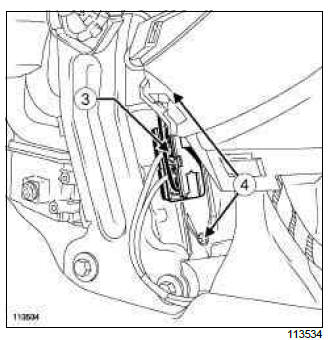

- Disconnect the connector (3) from the heating resistors.
- Remove:
- the bolts (4) from the heater resistors,
- the heater resistors.
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Refit:
- the heater resistors.

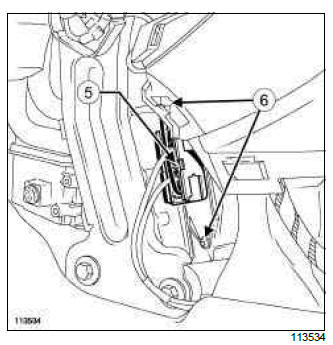

- the bolts (6) from the heater resistors.
- Connect the connector (5) to the heating resistors.
II - FINAL OPERATION.
- Clip on the dashboard lower trim.
- Refit the centre console (see Centre console: Removal - Refitting) (MR 393, 57A, Interior equipment).
