Renault Clio: Left-hand drive
Renault Clio IV (2014-2019) Owners Manual / Getting to know your vehicle / Driving position / Left-hand drive

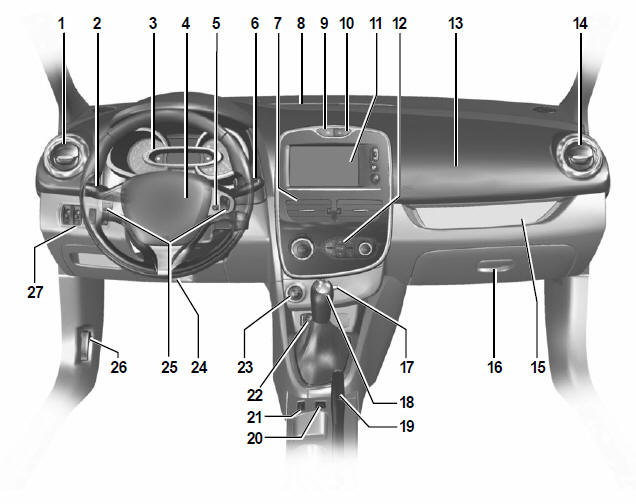

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
- Side air vent.
- Stalk for:
- direction indicator lights;
- exterior lights;
- front fog lights;
- rear fog lights.
- Instrument panel.
- Driver Airbag and horn location.
- Multimedia system voice control button.
- Stalk:
- windscreen and rear screen wash/wipe;
- trip computer and warning system information readout.
- Centre air vents.
- Windscreen demister outlet.
- Hazard warning lights switch.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
- Door electric locking switch.
- Multimedia touch-screen.
- Heating or air conditioning controls.
- Passenger Airbag location.
- Side air vent.
- Storage space.
- Glovebox.
- RENAULT card reader.
- Gear lever.
- Handbrake.
- Activation/deactivation control for ECO mode.
- Cruise control/speed limiter control.
- Cigarette lighter/accessories socket.
- Engine start/stop button.
- Control for adjusting steering wheel height and reach.
- Cruise control/speed limiter controls.
- Bonnet release control.
- Controls for:
- electric headlight beam adjustment,
- instrument panel lighting dimmer,
- activate/deactivate the parking distance control system,
- activation/deactivation of the function Stop and Start.
