Renault Clio: Multifunction support:
Removal - Refitting
D4F, and 740 or 742 or 764
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).
AIR CONDITIONING
- Remove the air conditioning compressor (see Compressor:
Removal - Refitting) (MR 392, 62A, Air
conditioning).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

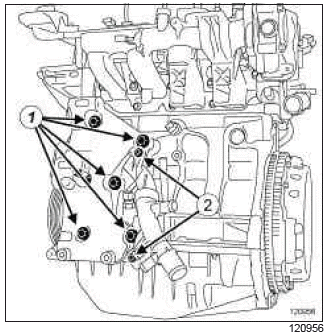

- Remove:

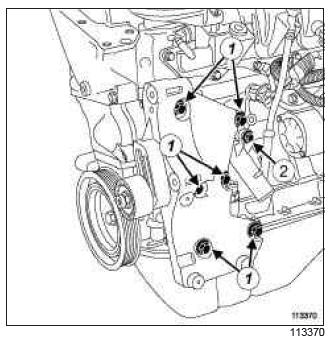

- the multifunction support mounting bolts (1),
- the coolant pump inlet pipe mounting bolt (2),
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Position the multifunction support.

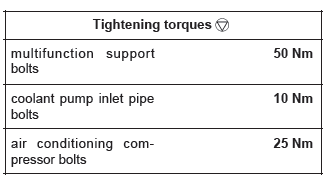

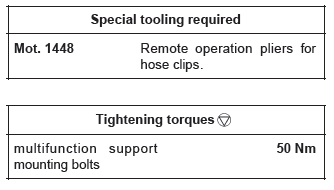

- Tighten to torque the multifunction support
mounting bolts (50 N.m).
- Refit the water pump inlet pipe mounting bolt.
II - FINAL OPERATION.
AIR CONDITIONING
- Refit the air conditioning compressor (see Compressor:
Removal - Refitting) (MR 392, 62A, Air
conditioning).
- Refit:
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres).
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
K4J or K4M, and AIR CONDITIONING
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).

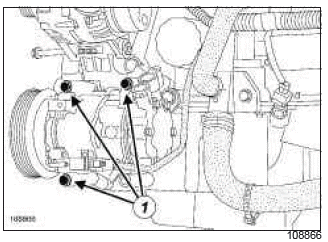

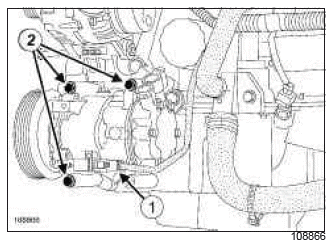

- Remove the mounting bolts (1) from the air conditioning
compressor.
- Attach the air conditioning compressor to the cooling
radiator cross member.
- Unclip the alternator wiring harness from the multifunction
support.
II - REMOVAL OF PART CONCERNED
- Remove:

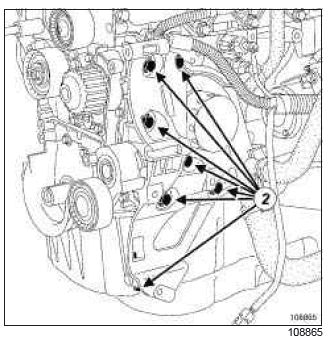

- the multifunction support mounting bolts (2),
- the multifunction support.
REFITTING
I - REFITTING PART CONCERNED

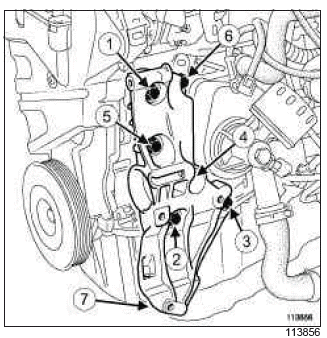

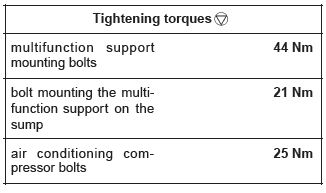

- Torque tighten and in order:

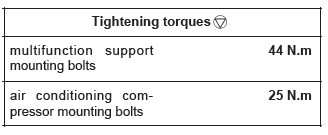

- the multifunction support mounting bolts (44
Nm),
- the bolt mounting the multifunction support on
the sump (21 Nm).
II - FINAL OPERATION.
- Clip the alternator wiring harness onto the multifunction
support.
- Detach the air conditioning compressor from the
cooling radiator cross member.
- Refit the air conditioning compressor mounting
bolts.
- Torque tighten the air conditioning compressor
bolts (25 Nm).
- Refit:
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres).
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
K4J or K4M, and STANDARD HEATING
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).
- Remove:

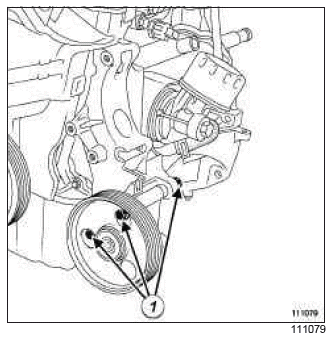

- the idler pulley support mounting bolts (1),
- the idler pulley support.
- Unclip the alternator wiring harness from the multifunction
support.
II - REMOVAL OF PART CONCERNED
- Remove:

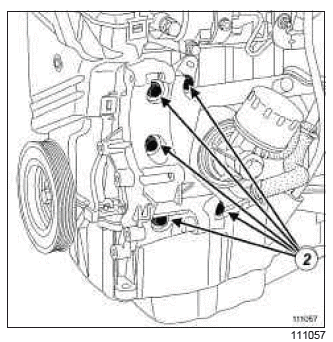

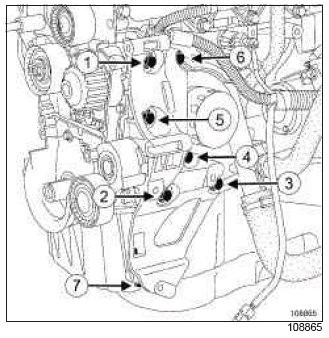

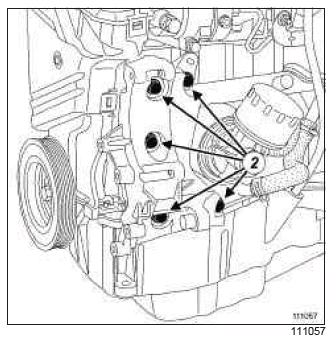

- the multifunction support mounting bolts (2),
- the multifunction support.
REFITTING
I - REFITTING PART CONCERNED
- Refit:
- the multifunction support,
- the multifunction support mounting bolts.

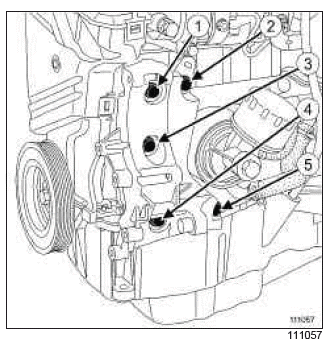

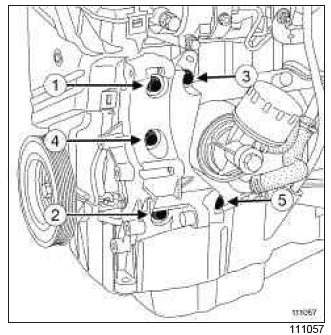

- Tighten to torque and in order the multifunction
support mounting bolts (44 Nm).
II - FINAL OPERATION.
- Clip the alternator wiring harness onto the multifunction
support.
- Refit:
- the free pulley support,
- the free pulley support mounting bolts,
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres).
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
K9K, and AIR CONDITIONING
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the engine cover,
- the engine undertray,
- the front wheels (see Wheel: Removal - Refitting)
(MR 392, 35A, Wheels and tyres),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting) (MR
393, 55A, Exterior protection),
- the bumper (see Front bumper: Removal - Refitting)
(MR 393, 55A, Exterior protection),
- the intercooler (see 12B, Turbocharging, Intercooler:
Removal - Refitting, 12B-21),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).

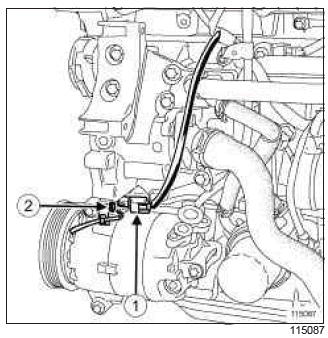

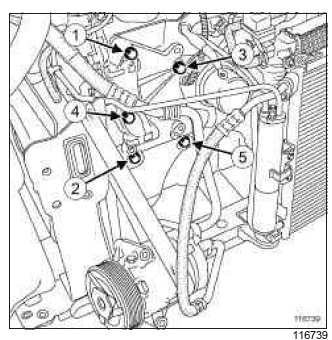

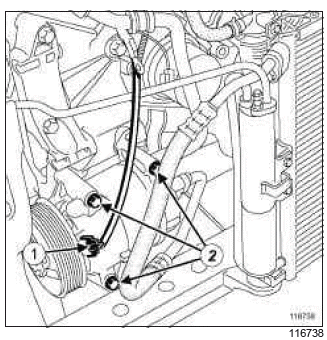

- Disconnect the clutch connector (1) from the air conditioning
compressor.
- Remove the air conditioning compressor bolts (2).
- Move the air conditioning compressor aside.
Note:
This operation does not require the AC system to
be drained.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

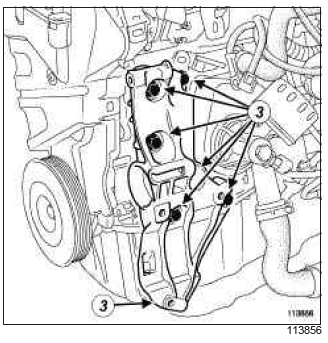

- Remove:

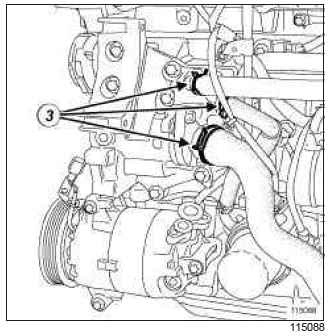

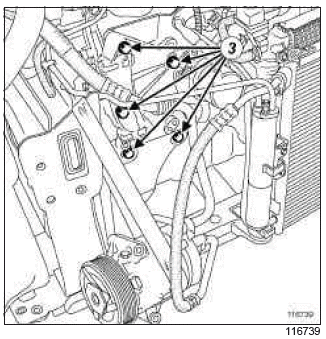

- the multifunction support bolts (3),
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit the multifunction support.
- Fit the multifunction support bolts on the cylinder
block without tightening.

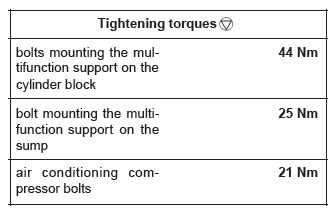

- Torque tighten and in order:
- the bolts mounting the multifunction support
on the cylinder block (44 Nm),
- the bolt mounting the multifunction support on
the sump (25 Nm).
II - FINAL OPERATION.
- Refit the air conditioning compressor bolts.
- Torque tighten the air conditioning compressor
bolts (21 Nm).
- Connect the air conditioning compressor clutch connector.
- Refit:
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the intercooler (see 12B, Turbocharging, Intercooler:
Removal - Refitting, 12B-21),
- the bumper (see Front bumper: Removal - Refitting)
(MR 393, 55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting) (MR
393, 55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(MR 392, 35A, Wheels and tyres),
- the engine undertray,
- the engine cover,
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
K9K, and STANDARD HEATING
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the engine undertray,
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection),
- the intercooler (see 12B, Turbocharging, Intercooler:
Removal - Refitting, 12B-21),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).
- Remove:

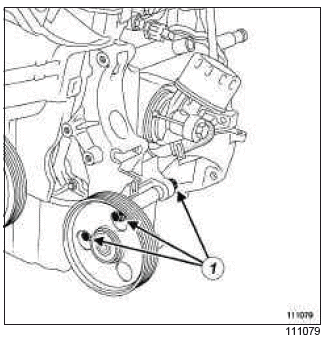

- the idler pulley support mounting bolts (1),
- the idler pulley support.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
- Remove:
- the multifunction support mounting bolts (2),
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit the multifunction support, finger tightening the
bolts.

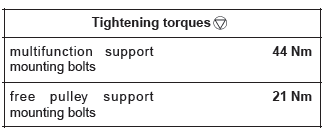

- Tighten to torque and in order the multifunction
support mounting bolts (44 Nm).
II - FINAL OPERATION.
- Refit:
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the free pulley support,
- the free pulley support mounting bolts.
- Torque tighten the free pulley support mounting
bolts (21 Nm).
- accessories belt
- free wheel pulley

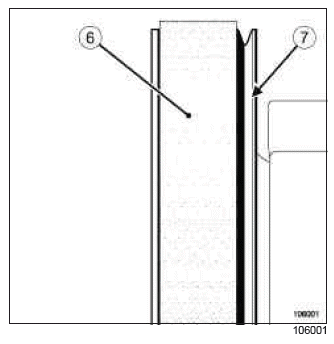

Note:
The accessories belt (6) must be fitted on the
free wheel pulley (7) as shown in the diagram
above.
- Refit:
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the intercooler (see 12B, Turbocharging, Intercooler:
Removal - Refitting, 12B-21),
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres),
- the engine undertray.
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
M4R
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see ) (MR 392, 80A, Battery).
- Drain the cooling system (see 19A, Cooling, Cooling
system: Draining - Refilling, 19A-16).
- Remove:
- the engine undertray,
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection),
- the frontal impact cross member (see Front impact
cross member: Removal - Refitting) (MR
393, 41A, Front lower structure),
- the front end panel air resonator (see 12A, Fuel
mixture, Air resonator: Removal - Refitting, 12A-10),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the coolant pump (see 19A, Cooling, Coolant
pump: Removal - Refitting, 19A-41).
- Disconnect the connector (1) from the air conditioning
compressor.
- Remove the bolt (2) mounting the air conditioning
connector mounting.
- Disconnect the cooling hoses (3) using the (Mot.1448).
II - REMOVAL OF PART CONCERNED

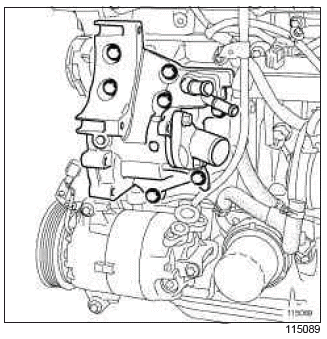

- Remove:
- the multifunction support mounting bolts,
- the multifunction support,
- the multifunction support seal.
REFITTING
I - REFITTING PREPARATION OPERATION
- The multifunction support seal must be replaced.
II - REFITTING PART CONCERNED
- Refit the multifunction support.
- Finger tighten the multifunction support mounting
bolts until contact.
- Tighten to torque the multifunction support
mounting bolts (50 Nm).
III - FINAL OPERATION.
- Connect the cooling hoses using the (Mot. 1448).
- Refit the bolt securing the air conditioning connector
mounting.
- Connect the air conditioning compressor connector.
- Refit:
- the coolant pump (see 19A, Cooling, Coolant
pump: Removal - Refitting, 19A-41),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the front end panel air resonator (see 12A, Fuel
mixture, Air resonator: Removal - Refitting, 12A-10),
- the frontal impact cross member (see Front impact
cross member: Removal - Refitting) (MR
393, 41A, Front lower structure),
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection),
- the engine undertray.
- Connect the battery.
- Fill the cooling system (see 19A, Cooling, Cooling
system: Draining - Refilling, 19A-16) (MR
392, 80A, Battery).
F4R
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection),
- the front end panel (see Front end panel: Removal
- Refitting) (MR 393, 42A, Upper front structure),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).
- Disconnect the connector (1) from the air conditioning
compressor.
- Remove the mounting bolts (2) from the air conditioning
compressor.
- Attach the air conditioning compressor to prevent
the air conditioning ducts from being disturbed in
any way.
II - OPERATION FOR PREPARATION OF PART
CONCERNED
- Remove:
- the multifunction support mounting bolts (3),
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the multifunction support,
- the multifunction support bolts.
- Tighten to torque and in order the multifunction
support mounting bolts (44 N.m).
II - FINAL OPERATION
- Fit the air conditioning compressor.
- Refit the air conditioning compressor mounting
bolts.
- Tighten to torque the air conditioning compressor
mounting bolts (25 N.m).
- Refit:
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the front end panel (see Front end panel: Removal
- Refitting) (MR 393, 42A, Upper front structure),
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection).
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
D4F, and 784 or 786
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see ) (MR 392, 80A, Battery).
- Remove:
- the engine undertray,
- the front wheels (see Wheel: Removal - Refitting)
(MR 392, 35A, Wheels and tyres),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting) (MR
393, 55A, Exterior protection),
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection),
- the intercooler (see 12B, Turbocharging, Intercooler:
Removal - Refitting, 12B-21),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5).
AIR CONDITIONING
- Disconnect the air conditioning compressor clutch
connector.
- Remove the air conditioning compressor bolts.
- Detach the air conditioning pipe from the body between
the compressor and the expansion valve.
- Position the air conditioning compressor on the radiator
mounting cross member.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
- Remove:
- the bolts (1) from the coolant pump inlet pipe,
- the multifunction support bolts (2),
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the multifunction support,
- the multifunction support bolts,
- the coolant pump inlet pipe bolts.
- Torque tighten:
- the multifunction support bolts (50 Nm),
- the coolant pump inlet pipe bolts (10 Nm).
II - FINAL OPERATION.
AIR CONDITIONING
- Refit the air conditioning compressor.
- Attach the air conditioning pipe to the body between
the compressor and the expansion valve.
- Refit the air conditioning compressor bolts.
- Torque tighten the air conditioning compressor
bolts (25 Nm).
- Connect the air conditioning compressor clutch connector.
- Refit:
- the alternator (see 16A, Starting - Charging, Alternator:
Removal - Refitting, 16A-5),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the intercooler (see 12B, Turbocharging, Intercooler:
Removal - Refitting, 12B-21),
- the front bumper (see Front bumper: Removal -
Refitting) (MR 393, 55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting) (MR
393, 55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(MR 392, 35A, Wheels and tyres),
- the engine undertray.
- Connect the battery (see ) (MR 392, 80A, Battery).
READ NEXT:
REMOVAL
I - REMOVAL PREPARATION OPERATION
Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
Remove:
the battery (see Battery: Removal - Refitt
REMOVAL
I - REMOVAL PREPARATION OPERATION
Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
IMPORTANT
During this operation, secure the
SEE MORE:
B85 or K85
REMOVAL
I - REMOVAL PREPARATION OPERATION
Special features of vehicles fitted with manual
window winders
Unclip the winder handle (1) using a pair of unclipping
pliers (protect the door trim).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
Remove the trim piece and bolt (2).
Take o
LEFT-HAND DRIVE
REMOVAL
I - REMOVAL PREPARATION OPERATION
Put the vehicle on a two-post lift (see Vehicle: Towing and lifting).
Drain the coolant circuit using refrigerant charging
station.
Fit a pedal press on the brake pedal.
Disconnect the battery (see Battery: Removal - Refitting).
Remov
© 2016-2024 Copyright Renault Clio Owners Club
