Renault Clio: Rear drum bearing: Removal - Refitting
Using a dial gauge connected to the drum, check that
the end float is greater than 0.03 mm.
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle: Towing and
lifting).
- Remove:
- the rear wheels (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, 35A-1),
- the brake drum (see 33A, Rear axle components,
Rear brake drum: Removal - Refitting, 33A-19).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

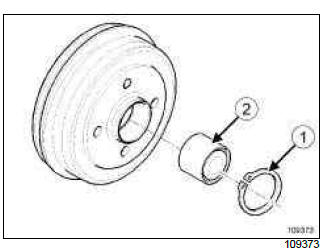

- From the drum, remove:
- the bearing retaining circlip (1),
- the bearing (2) using a tube with an external diameter
of 47 mm and a press.
Note:
Check that the tube is pressing against the outer
bush of the bearing.
REFITTING
I - REMOVAL PREPARATION OPERATION
- Clean:
- the internal and external surfaces of the new bearing
in contact with the drum and the stub axle,
- the surfaces of the drum in contact with the new
bearing,
- the stub-axle surfaces in contact with the new bearing,
WARNING
It is essential to check the condition of the surface
of the stub axle and the bore of the drum
before refitting the bearing. Replace the stub
axle carrier if it is faulty.
WARNING
Do not apply pressure to the inner bearing bush,
to avoid damaging the bearing (significant force
is required for fitting).
II - REFITTING OPERATION FOR PART
CONCERNED
- Lift the bearing until it presses onto the shoulder using
a tube with an external diameter of 51 mm and a
press.
- Refit the circlip
III - FINAL OPERATION
- Refit:
- the brake drum (see 33A, Rear axle components,
Rear brake drum: Removal - Refitting, 33A-19),
- the rear wheels (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, 35A-1).
