Renault Clio: To lock the system
Renault Clio IV (2014-2019) Owners Manual / Practical advice / Puncture, emergency spare wheel / To lock the system

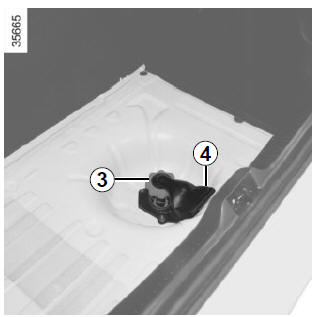

- Press nut 3, screwing it on fully until it locks in place. Several turns will be necessary. This operation is essential to ensure that the wheel is secure;
- return handle 4 to its original position;
- clip the tool kit;
- replace the cover, then lower it and replace the luggage compartment carpet.
NB: if the tool kit does not lock in place, check the tightness of nut 3 and the correct positioning of handle 4.
Special features
The emergency spare wheel holder should always be present when you are driving even when the wheel itself is not present: risk of water entering the vehicle.
If you have to release it when it is not holding a wheel, push the centre of the wheel holder towards the ground while pressing handle 4.
| It is essential to lock the nut so that the wheel is held securely. |
| The system should only be used with the original vehicle wheels or identical wheels. |
