Rotary switch: Removal - Refitting

The rotary switch is part of the steering column control assembly. It cannot be replaced on its own.

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the steering column control assembly (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove:
  • the lighting switch (see 84A, Control - Signals, Signals and lighting switch: Removal - Refitting, 84A-9),
  • the windscreen wiper switch (see 84A, Control - Signals, Screen wiper switch: Removal - Refitting, 84A-8).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the lighting switch (see 84A, Control - Signals, Signals and lighting switch: Removal - Refitting, 84A-9),
  • the windscreen wiper switch (see 84A, Control - Signals, Screen wiper switch: Removal - Refitting, 84A-8).

II - FINAL OPERATION.

• Refit the steering column control assembly (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

Steering column switch assembly: List and location of components

1. UCH
2. Steering wheel gear selector
3. Windscreen wiper switch
4. Signalling light switch
5. Remote control satellite

I - UCH

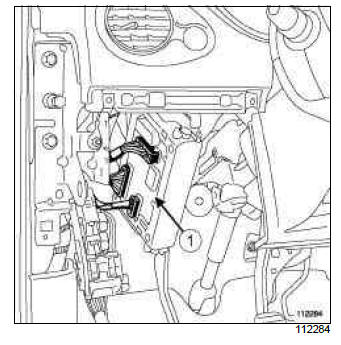

UCH (1)

II - STEERING WHEEL GEAR SELECTOR

Steering wheel gear selector (2) (the selector is an integral part of the rotary switch)

III - WINDSCREEN WIPER SWITCH

Windscreen wiper switch (3)

IV - SIGNALLING LIGHT SWITCH

Signalling light switch (4)

V - REMOTE CONTROL SATELLITE

Car phone control satellite (5) (the satellite is an integral part of the windscreen wiper switch)

Steering column switch assembly: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove:
  • the driver's frontal airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, 88C-22),
  • the steering wheel (see Steering wheel: Removal - Refitting).
• The wheels must be set straight ahead.

• Remove the front door seal

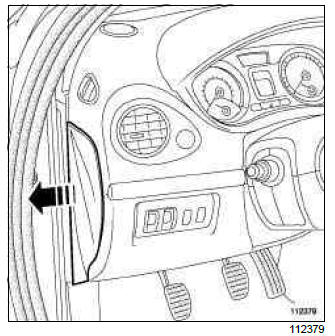

• Unclip the dashboard side panel.

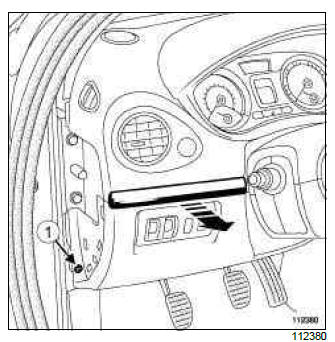

• Unclip the protective strip.
• Remove the bolt (1).

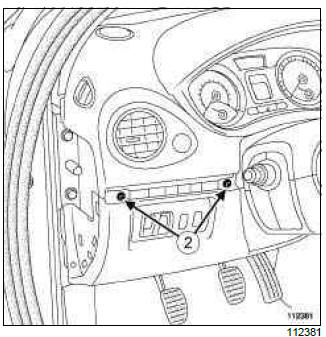

• Remove bolts (2).
• Unclip the trim underneath the steering wheel.

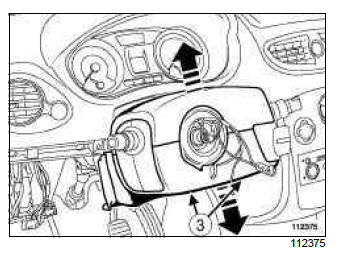

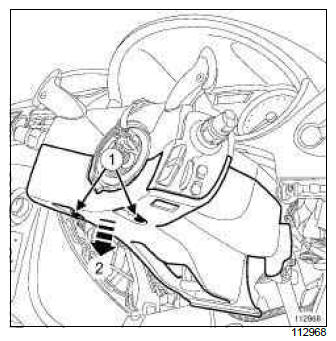

• Remove the lower half cowling mounting bolts (3).
• Unclip the half covers.

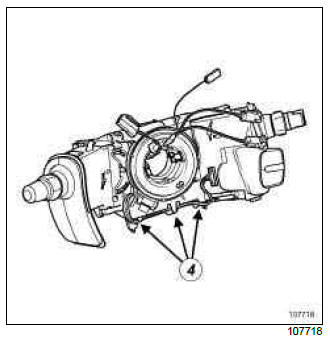

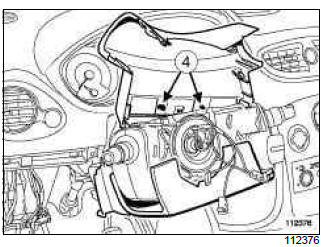

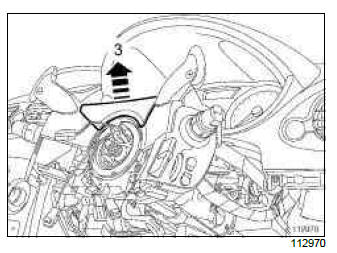

• Remove the gaiter upper trim by pressing down on the clips (4).
• Extract the lower half-cowling from the driving position height adjustment handle.

II - OPERATION FOR REMOVAL OF PART CONCERNED

WARNING

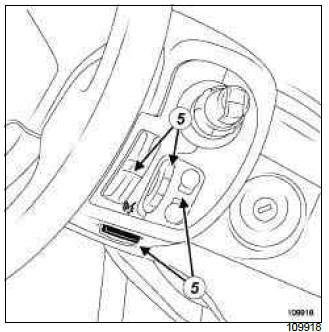

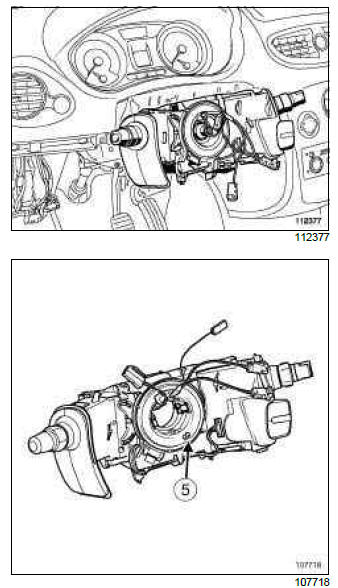

Check that the wheels are set straight ahead and that the rotary switch mark (5) is correctly positioned opposite the index.

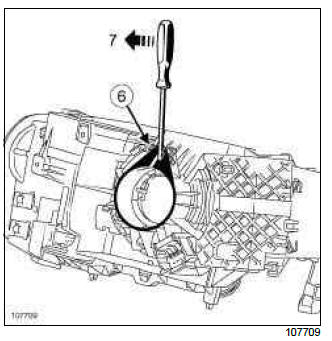

• Undo the rotary switch mounting bolt (6).

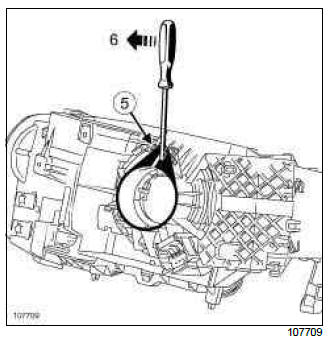

• Press down on (7) using a flat-blade screwdriver to release the rotary switch.
• Remove part of the steering column controls assembly to disconnect the connectors.
• Remove the steering wheel control assembly.

REFITTING

I - REFITTING PREPARATION OPERATION

WARNING

Make sure that the wheels are set straight ahead and that the rotary switch mark is at 0.

WARNING

It is essential to observe the wiring harness routing to prevent it being damaged when the half-shells are refitted.

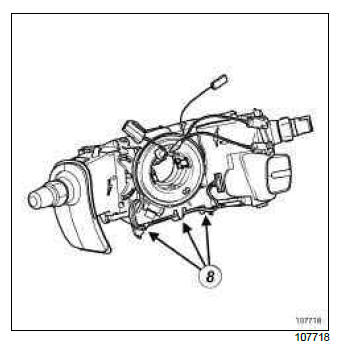

• Position the wiring harness as indicated (8).

II - REFITTING OPERATION FOR PART CONCERNED

• Connect the connectors.
• Position the steering column controls assembly.
• Fix the steering column controls assembly into place.

III - FINAL OPERATION

• Refit the steering column half-covers.
• Fix the half-covers into place.
• Refit the steering column trim.
• Fix the steering column trim.
• Clip the protective strip into place.
• Refit:
  • the dashboard side panel.
  • the steering wheel (see Steering wheel: Removal - Refitting),
  • the driver's frontal airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, 88C-22).

Screen wiper switch: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the steering column controls assembly (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

II - OPERATION FOR REMOVAL OF PART CONCERNED

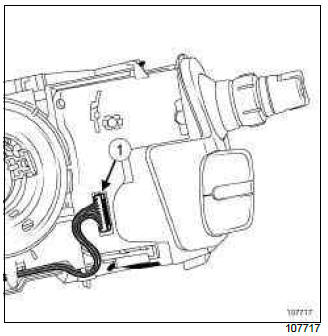

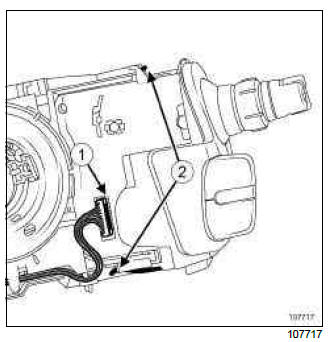

• Disconnect the connector (1).

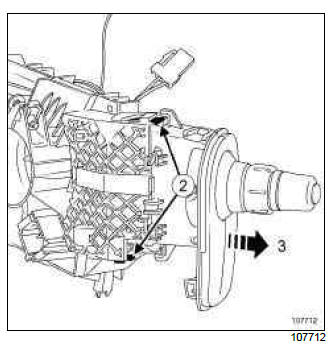

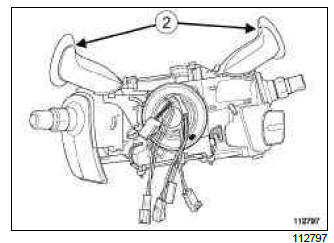

• Remove the windscreen wiper switch by pressing down on the clips (2).

Note: The remote control satellite and the windscreen wiper switch are one inseparable component.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Clip the windscreen wiper switch onto the rotary switch.
• Connect the connector.

II - FINAL OPERATION

• Refit the steering column controls assembly (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

Signals and lighting switch: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the steering column controls assembly (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Disconnect the connector (1).
• Free the rotary switch wiring harness.

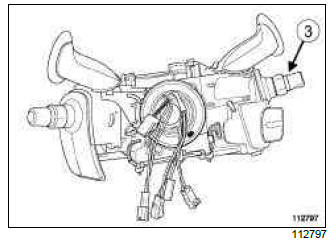

• Unclip the light switch (3) by pressing down on the clips. (2).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Clip the light switch onto the rotary switch.
• Connect the connector.

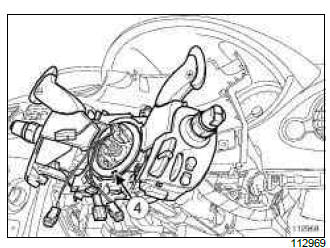

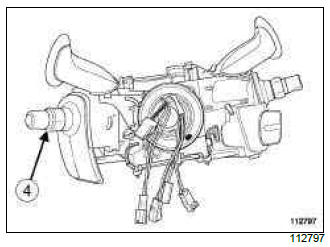

• Position the wiring harness as indicated (4).

WARNING

It is essential to observe the harness routing to prevent it from being damaged when the covers are refitted.

II - FINAL OPERATION

• Refit the steering column controls assembly (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

Gear selector on the steering wheel: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove:
  • the driver's airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, 88C-22),
  • the steering wheel (see Steering wheel: Removal - Refitting),
  • the steering column controls (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

• Remove the mounting bolts (1) from the shell under the steering wheel.
• Unclip the half-shell underneath the lower part of the steering wheel (2).

• Unclip upper trim (3)

WARNING

Check that the wheels are set straight ahead and that the rotary switch mark (4) is correctly positioned opposite the index.

• Undo the rotary switch mounting bolt (5).

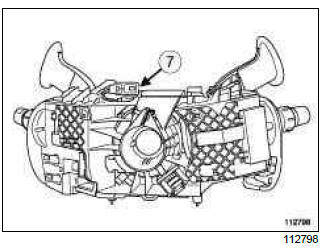

• Press down on (6) using a flat-blade screwdriver to release the rotary switch.
• Remove part of the steering column controls assembly.

• Disconnect:
  • the connectors for the steering column controls,
  • the gear selector connector on the steering wheel (7).

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove:

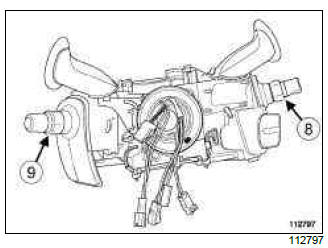

  • the windscreen wiper switch (8) (see 84A, Control - Signals, Screen wiper switch: Removal - Refitting, 84A-8),
  • the signal lighting switch (9) (see 84A, Control - Signals, Signals and lighting switch: Removal - Refitting, 84A-9).

Note: The speed selector on the steering wheel cannot be separated from the rotary switch.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit:
  • the windscreen wiper switch (see 84A, Control - Signals, Screen wiper switch: Removal - Refitting, 84A-8),
  • the signalling light switch (see 84A, Control - Signals, Signals and lighting switch: Removal - Refitting, 84A-9),
  • the steering column controls (see 84A, Control - Signals, Steering column switch assembly: Removal - Refitting, 84A-4).

II - FINAL OPERATION

• Refit:
  • the steering wheel (see Steering wheel: Removal - Refitting),
  • the driver's airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, 88C-22).

Hazard warning lights and central door control: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the centre console (see Centre console: Removal - Refitting) (MR 393, 57A, Interior equipment).

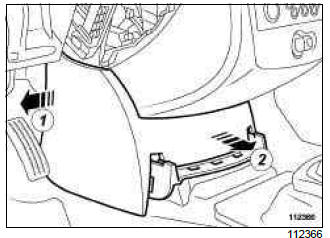

• Unclip the trim at (1) and (2).

RADIO NO. 01 or RADIO NO. 02 or RADIO NO.03 or RADIO NO. 04 or RADIO NO. 05 or RADIO NO. 06

• Remove the radio (see 86A, Radio, Radio: Removal - Refitting, 86A-8).

NAVIGATION AID 1

• Remove the radio navigation system (see 83C, On-board telematics system, Radio navigation: Removal - Refitting, 83C-3).

WITHOUT NAVIGATION AID, and VEHICLE WITHOUT RADIO

• Unclip the glovebox using the (Car. 1363).

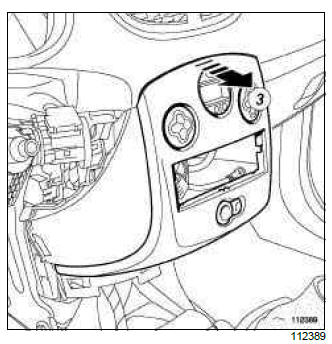

• Unclip the centre front panel at (3).

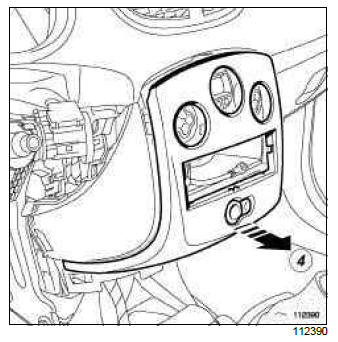

• Unclip the centre front panel at (4)
• Disconnect the connectors.

II - OPERATION FOR REMOVAL OF PART CONCERNED

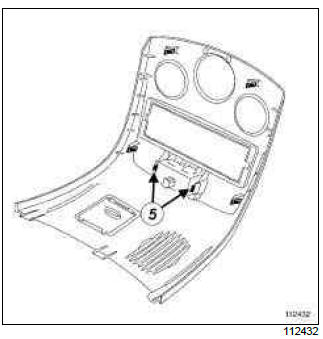

• Unclip the switch by moving clips (5).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Clip the switch onto the front panel.

II - FINAL OPERATION.

• Connect the centre front panel connectors.
• Clip in the centre front panel beginning with the lower section.

RADIO NO. 01 or RADIO NO. 02 or RADIO NO.03 or RADIO NO. 04 or RADIO NO. 05 or RADIO NO. 06

• Refit the radio (see 86A, Radio, Radio: Removal - Refitting, 86A-8).

NAVIGATION AID 1

• Refit the radio navigation system (see 83C, On-board telematics system, Radio navigation: Removal - Refitting, 83C-3).

WITHOUT NAVIGATION AID, and VEHICLE WITHOUT RADIO

• Clip the glovebox in position.

• Clip the trim under the centre front panel.
• Refit the centre console (see Centre console: Removal - Refitting) (MR 393, 57A, Interior equipment).

ESP inhibitor switch: Removal - Refitting

ELECTRONIC STABILITY PROGRAM

REMOVAL

I - REMOVAL PREPARATION OPERATION

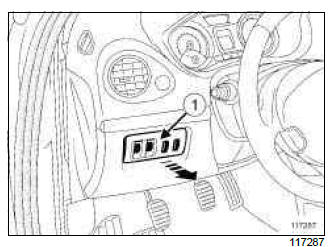

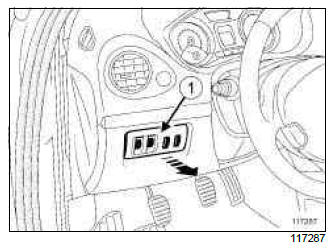

• Unclip the control plate (1) using the tool (Car.1363).
• Disconnect the connectors.
• Remove the plate.

II - OPERATION FOR REMOVAL OF PART CONCERNED

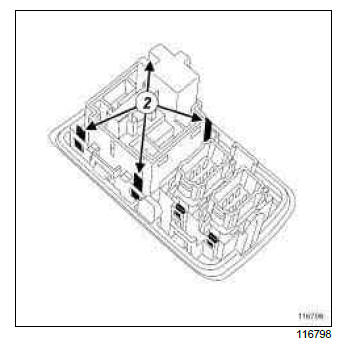

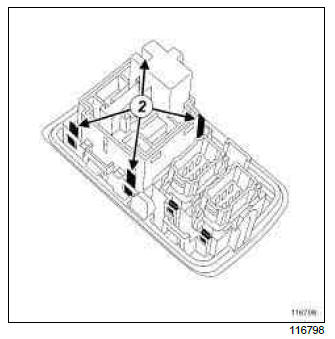

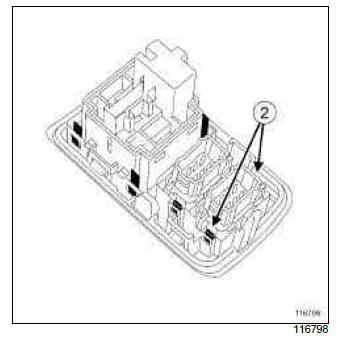

• Remove the ESP disabling switch by pressing on the clips (2).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Clip the ESP disabling switch onto the switch plate.
• Connect the connectors.

II - FINAL OPERATION.

• Clip the switch plate onto the lower dashboard trim.

Remote headlight beam adjustment control: Removal - Refitting

WITHOUT DISCHARGE LAMPS

REMOVAL

I - REMOVAL PREPARATION OPERATION

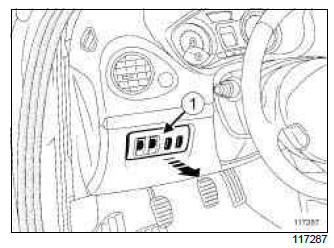

• Unclip the switch plate (1) using the (Car. 1363) tool.
• Disconnect the connectors.
• Remove the plate.

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove the headlight remote adjustment control by pressing on the clips (2).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit the headlight remote adjustment control onto the switch plate.
• Connect the connectors.

II - FINAL OPERATION.

• Clip the switch plate on the dashboard lower trim.

Lighting dimmer: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Unclip the switch plate (1) using the tool (Car. 1363).
• Disconnect the connectors.
• Remove the plate.

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove the lighting dimmer by pressing on the clips (2).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit the lighting dimmer on the switch plate.
• Connect the connectors.

II - FINAL OPERATION.

• Clip the switch plate on the dashboard lower trim.

Exterior rear view mirror control switch: Removal - Refitting

DOOR MIRRORS 02 or DOOR MIRRORS 03

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

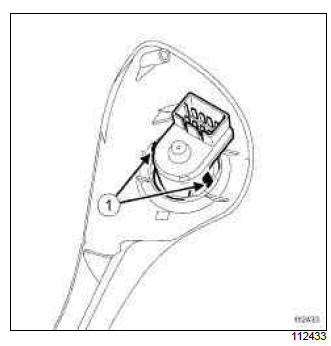

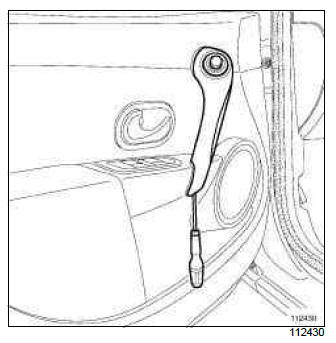

• Unclip the interior handle trim using a small flat-blade screwdriver.
• Disconnect the connector.

• Squeeze the clips (1) to unclip the door mirror control switch.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

• Clip the switch onto the interior handle trim.
• Connect the connector.
• Clip on the interior handle trim.

Heated rear screen: Repair

The screen printed heated grid on the inner face of the window may have an accidental cut, making the affected part of the circuit useless.

• Determine the exact location of the cut using a voltmeter.

  Faults such as these can be repaired by using the heated rear screen varnish available at the. Magasin Pi
