Renault Clio: Exterior lighting and signals
Renault Clio IV (2014-2019) Owners Manual / Getting to know your vehicle / Exterior lighting and signals

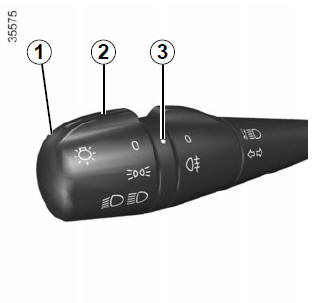

Side lights
Turn the ring 2 until the symbol is opposite mark 3.
An indicator light on the instrument panel will come on.
Daytime running lights function (front lights only)
Depending on the vehicle, the daytime running lights come on automatically when the engine is started.
| Before driving at night, check that the electrical equipment is operating correctly and adjust the headlight beams (if your vehicle is not carrying its normal load). As a general precaution, check that the lights are not obscured (by dirt, mud, snow or objects being transported). |
The daytime running lights function is activated by default. Depending on the vehicle, it can be deactivated. Please refer to the multimedia touchscreen system instructions.
Dipped beam
headlights
Manual operation
Turn the ring 2 until the symbol is opposite mark 3. This indicator light on the instrument panel comes on.
Automatic operation (depending on vehicle)
Turn ring 2 until the AUTO symbol is opposite mark 3: with the engine running, the dipped beam headlights switch on or off automatically depending on the brightness of the light outside, without any action on stalk 1.
| If driving on the left in a left-hand drive vehicle (or vice versa), drivers must have the lights adjusted (except for vehicles fitted with xenon bulbs) by an authorised dealer for the duration of the trip. |
Main beam headlights

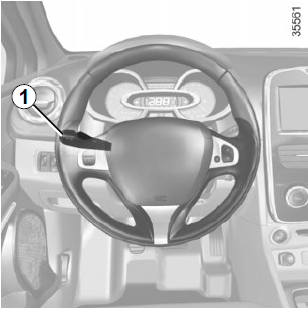

With the engine running and the dipped beam headlights lit, push stalk 1. This indicator light on the instrument panel comes on.
To return to the dipped headlight position, pull stalk 1 towards you again.
Switching off the lights
There are two possibilities:
- Manually, move ring 2 to position 0;
- automatically, if the ring 2 is in AUTO position and if the main beam headlights are not switched on. The lights go out automatically when the engine is switched off, when the driver’s door is opened or the vehicle is locked. In this case, the next time the engine is started, the lights will be switched back on according to the position of the ring 2, taking into account the exterior light level, without moving the stalk 1.
NB: if the fog lights are lit, the lights are not switched off automatically.
Lights-on reminder buzzer
If the lights are switched on after the engine is switched off, a warning beep sounds when the driver’s door is opened to warn you that the lights are still on.

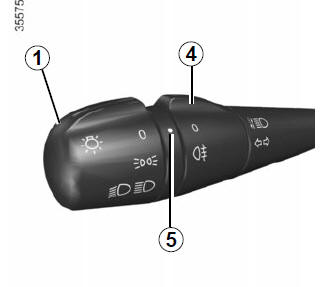

Front fog lights
Turn centre ring 4 on the stalk 1 until the symbol faces mark 5, then release it.
Operation of the fog lights depends on the exterior lighting position selected, and an indicator light will light up on the instrument panel.
Rear fog light
Turn centre ring 4 on the stalk until the symbol faces mark 5, then release it.
Operation of the fog lights depends on the exterior lighting selected, and an indicator light will light up on the instrument panel.
To avoid inconveniencing other road users, remember to switch off the rear fog light when it is no longer needed.
| When driving in fog or snow, or
when transporting objects which are
higher than the roof, the headlights
do not come on automatically. Switching on the fog lights remains the responsibility of the driver: the indicator lights on the instrument panel inform you whether the fog lights are lit (indicator light on) or not (indicator light not on). |
Switching off the lights
Turn ring 4 again until mark 5 is opposite the symbol for the fog light you wish to switch off. The corresponding indicator light goes out on the instrument panel.
The front and rear fog lights switch off when the exterior lights are switched off.
