Renault Clio: Headlight adjustment
Renault Clio IV (2014-2019) Owners Manual / Getting to know your vehicle / Headlight adjustment

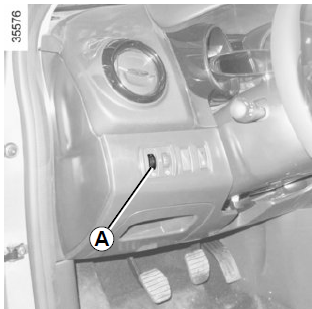

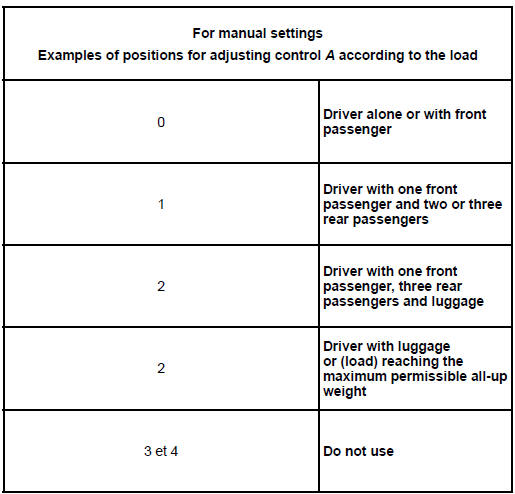

On vehicles fitted with this function, control A allows you to adjust the height of the beams according to the load.
Turn control A downwards to lower the headlights and upwards to raise them.
| If driving on the left in a left-hand drive vehicle (or vice versa), drivers must have the lights adjusted by an authorised dealer for the duration of the trip. |
