Renault Clio: Front centre air distribution duct: Removal -
Refitting

REMOVAL
I - REMOVAL PREPARATION OPERATION
- Lock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components
(MR 394, 88C, Airbags and pretensioners).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the driver's front airbag (see Driver's frontal airbag:
Removal - Refitting) (MR 392, 88C Airbag
and pretensioners),
- the steering wheel (see Steering wheel: Removal
- Refitting) (MR 392, 36B, Power-assisted steering),
- the steering column switch assembly (see Steering
column switch assembly: Removal - Refitting)
(MR 392, 84A, Control - signals).
WITHOUT NAVIGATION AID, and RADIO NO. 01
or RADIO NO. 02 or RADIO NO. 03 or RADIO NO.
04 or RADIO NO. 05 or RADIO NO. 06
- Remove the radio (see Radio: Removal - Refitting)
(MR 392, 86A, Radio).
NAVIGATION AID 1
- Remove the radio navigation system (see Radio
navigation: Removal - Refitting) (MR 392, 83C,
On-board telematics system).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO

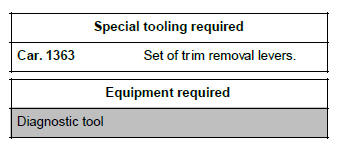

- Unclip the glovebox using the (Car. 1363).
- Remove:
- the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment),
- the control panel (see 61A, Heating, Control panel:
Removal - Refitting, 61A-98),
- the glovebox (see Glovebox: Removal - Refitting)
(MR 393, 57A, Interior equipment),
- the A-pillar trims (see Windscreen pillar trim: Removal
- Refitting) (MR 393, 71A, Body internal
trim),
- the solar radiation detector (see 61A, Heating, Solar
radiation sensor: Removal - Refitting, 61A-134),
- the tweeter speakers (see Tweeter: Removal -
Refitting) (MR 392, 86A, Radio),
- the dashboard (see Dashboard: Removal - Refitting)
(MR 393, 57A, Interior equipment).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

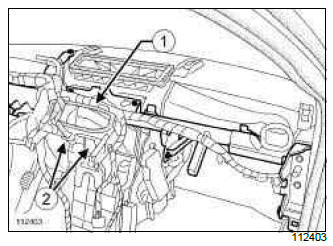

- Move the front centre air distribution duct wiring harness
(1) to one side.
- Remove:
- the bolts (2) from the front centre air distribution
duct,
- the front centre air distribution duct.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED

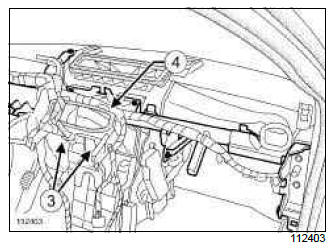

- Refit:
- the front centre air distribution duct.
- the front centre air distribution duct bolts (3).
- Position the front centre air distribution duct wiring harness (4).
II - FINAL OPERATION.
- Refit:
- the dashboard (see Dashboard: Removal - Refitting)
(MR 393, 57A, Interior equipment),
- the tweeter speakers (see Tweeter: Removal -
Refitting) (MR 392, 86A, Radio),
- the solar radiation detector (see 61A, Heating, Solar
radiation sensor: Removal - Refitting, 61A-134),
- the A-pillar trims (see Windscreen pillar trim: Removal
- Refitting) (MR 393, 71A, Body internal
trim),
- the glovebox (see Glovebox: Removal - Refitting)
(MR 393, 57A, Interior equipment),
- the control panel (see 61A, Heating, Control panel:
Removal - Refitting, 61A-98),
- the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment).
WITHOUT NAVIGATION AID, and RADIO NO. 01
or RADIO NO. 02 or RADIO NO. 03 or RADIO NO.04 or RADIO NO. 05 or RADIO NO. 06
- Refit the radio (see Radio: Removal - Refitting)
(MR 392, 86A, Radio).
NAVIGATION AID 1
- Refit the radio navigation system (see Radio navigation:
Removal - Refitting) (MR 392, 83C, On
board telematics system).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO
- Clip the glovebox in position.
- Refit:
- the steering column switch assembly (see Steering
column switch assembly: Removal - Refitting)
(MR 392, 84A, Control - signals),
- the steering wheel (see Steering wheel: Removal
- Refitting) (MR 392, 36B, Power-assisted steering),
- the driver's front airbag (see Driver's frontal airbag:
Removal - Refitting) (MR 392, 88C Airbag
and pretensioners).
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Unlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of components
(MR 394, 88C, Airbags and pretensioners).
