Renault Clio: Front headrests
To raise the headrest
Pull the headrest upwards to the desired height. Check that it is correctly locked.
To lower the headrest

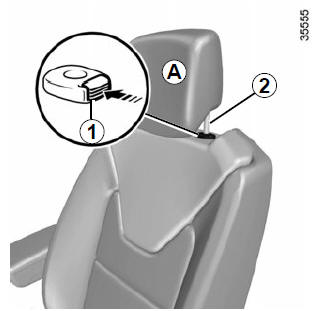

Press button 1 and guide the headrest down to the desired height. Check that it is correctly locked.
To raise the headrest
Raise the headrest to its highest position (tilt the seatback backwards if necessary). Press button 1 and lift the headrest to release it.
To refit the headrest
Insert the headrest rods into the holes (tilt the seatback backwards if necessary).
Lower the headrest until it locks and press button 1 to adjust to the desired height. Check that each rod 2 on the seatback is securely locked.

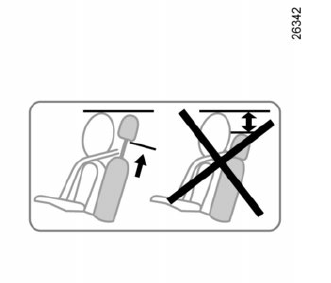

| The headrest is important for safety. Ensure that it is in place and in the correct position: the top of the headrest should be as close as possible to the top of the head and there must be a minimal distance between the head and the headrest A. |
