Renault Clio: Fuses
Fuses in passenger compartment A
If any electrical component does not work, check the condition of the fuses.
Unclip the access flap A.
| To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses. |
Clip 1

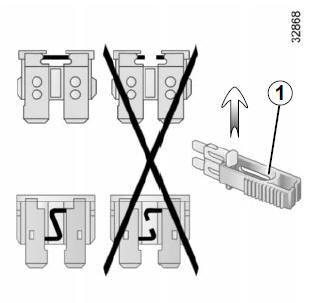

Remove the fuse using tweezers 1, located at the back of flap A.
To remove the fuse from the tweezers, slide the fuse to the side.
It is not advisable to use the free fuse locations
Fuses in engine compartment B

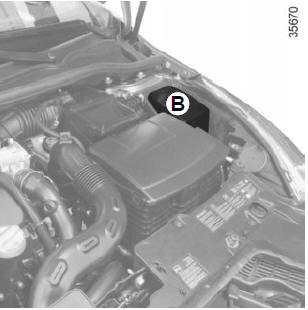

Some functions are protected by fuses located in the engine compartment (unit B).
However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved Dealer
| Check the fuse in question and replace it, if necessary, by a fuse
of the
same rating. If a fuse is fitted with too high a rating, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current. |
Allocation of fuses (the presence of certain fuse depends on the vehicle equipment level)
|
Number |
Allocation |
| 1 | Front windscreen wiper, controls under steering wheel |
| 2 | Front left-hand daytime running lights, right-hand side lights, left-hand main beam headlight, right-hand dipped beam headlight, front fog lights |
| 3 | Interior lighting, registration plate lighting, fog lights |
| 4 | Right-hand side lights, rear side lights |
| 5 | Left-hand side lights, front side lights |
| 6 | Dipped beams, front right-hand daytime running light, left-hand side lights, right-hand main beam headlight |
| 7 | Left-hand dipped beam headlight |
| 8 | Right-hand main beam headlight |
| 9 | Left-hand main beam headlight, steering column controls |
| 10 | Steering column controls, speed limiter/cruise control, interior rear-view mirror, belt warning module, Parking sensor, additional heating, electric headlight beam adjustment, rear screen de-icer |
| 11 | Central door locking, rain and light sensor, steering wheel angle sensor, vehicle start button, electric rear windows |
| 12 | Courtesy light, boot light, air conditioning, electric windows |
| 13 | ABS-ESC, brake switch |
| 14 | Steering column controls, brake switch |
| 15 | Horn |
| 16 | Rear fog lights |
| 17 | Cigarette lighter |
| 18 | Radio and multimedia, diagnostic socket |
| 19 | Power-assisted steering |
| 20 | GPL |
| 21 | Airbag, electric locking of steering column |
| 22 | Injection, starting, fuel pump |
| 23 | Brake switch, rear screen wiper, passenger compartment ECU |
| 24 | Daytime running lights |
| 25 | Electric headlight beam adjustment, rear screen, heating, parking sensor, cruise control, radio, heated seat, seat belt warning |
| 26 | Automatic gearbox |
| 27 | Reversing light, rear screen wiper, passenger compartment ECU, Automatic gearbox |
| 28 | Instrument panel |
| 29 | Steering column controls, Alarm |
| 30 | Air conditioning, steering column controls, energy ECU |
| 31 | Wipers, rear reversing lights, energy ECU |
| 32 | Central locking of opening elements |
| 33 | Direction indicator lights |
| 34 | Passenger compartment ECU, hands-free access |
| 35 | Interior lighting, electric windows, air conditioning, electric door mirrors, brake lights, ABS, passenger compartment ECU |
