Renault Clio: Intermediate shaft: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Disconnect the battery (see Battery: Removal - Refitting).
- Remove:

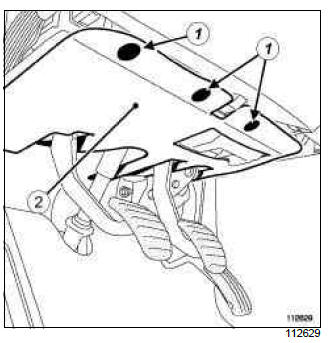

- the mounting clips (1) from the lower trim of the
driver's side dashboard,
- the lower trim (2) of the driver's side dashboard.
- Remove:
- the bolt-cover protective strip,
- the instrument panel's side cover.
- Remove:

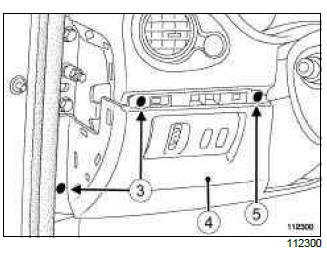

- the lower cover mounting bolts (3),
- the lower cover mounting clip (5).
- Unclip the lower cover (4).
- Disconnect the various connectors (depending on
equipment level).
- Remove the lower cover.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
- Lift the floor carpet to access the universal joint bolt.

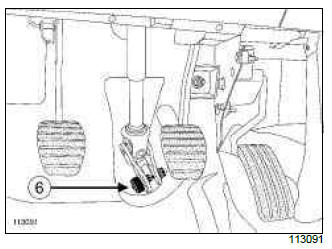

- Remove the steering column universal joint cover
(6) (do not keep).
- Set the wheels straight ahead.
- Remove:

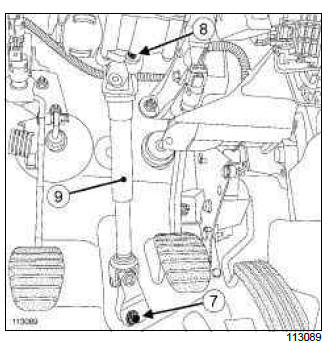

- the universal joint bolt (7) (do not keep),
- the universal joint nut (do not keep).
- the intermediate shaft bolt (8) on the column,
- the intermediate shaft (9).
REFITTING
I - REFITTING PREPARATION OPERATION
- Always replace the universal joint bolt and cam nut
after each removal.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit the intermediate shaft in its original position.
WARNING
Do not separate the two sliding parts of the intermediate
shaft.
- Ensure that the steering column universal joint cam
nut and bolt are fitted the right way round.
Note:
- always replace the steering column universal
joint bolt and cam nut (6) each time they are
removed.

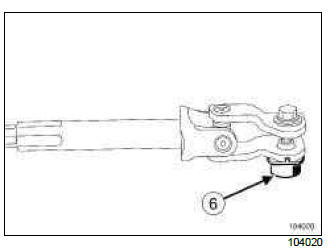

- on a new intermediate shaft, the universal joint
cam nut is prefitted; do not remove the cover (6)
- Refit the intermediate shaft to the column.
- Pretighten the mounting bolt of the shaft on the column.
- Pull the intermediate shaft to make sure that the bolt
is present in the neck
- Refit:
- the universal joint,
- the universal joint cam nut and bolt.
- Pretighten the universal joint cam nut and bolt.
- Pull the intermediate shaft to make sure that the bolt
is present in the neck

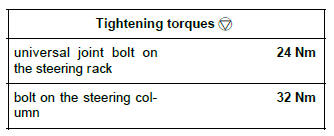

- Tighten to torque:
- the universal joint bolt on the steering rack (24
Nm),
- the bolt on the steering column (32 Nm).
- Refit the floor carpet.
Note:
Check that the floor carpet reaches under the
accelerator pedal end-stop.
III - FINAL OPERATION
- Refit the lower cover.
- Connect the various connectors (depending on
equipment level).
- Engage the lower cover clips.
- Refit:
- the lower cover mounting clip,
- the lower cover mounting bolts,
- the instrument panel's side cover,
- the bolt-cover protective strip,
- the lower trim of the driver's side dashboard,
- the mounting clips on the lower trim of the driver's
side dashboard.
- Connect the battery (see Battery: Removal - Refitting).
