Renault Clio: B-pillar upper trim: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Trim And Upholstery / Body Internal Trim / B-pillar upper trim: Removal - Refitting
C85
REMOVAL
REMOVAL PREPARATION OPERATION
- Remove:
- the complete rear bench seat,
- the rear wing panel lining (see 71A, Body internal trim, Rear panel lining: Removal - Refitting, 71A-32).
- Remove:

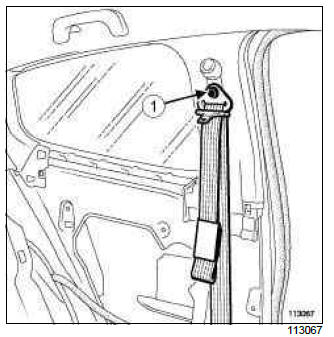

- the bolt (1),
- the seat belt.
- Unclip the height adjustment device (2).

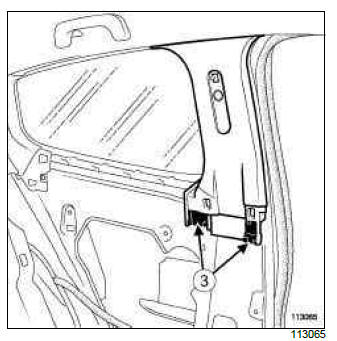

- Remove the covers (3).

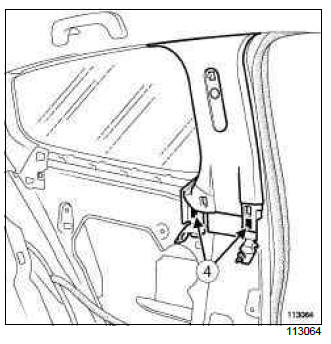

- Unclip the trim at (4).

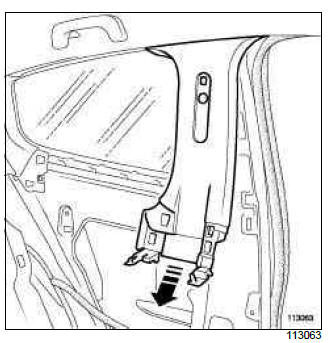

- Remove the B-pillar upper trim.
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Refit the B-pillar upper trim.

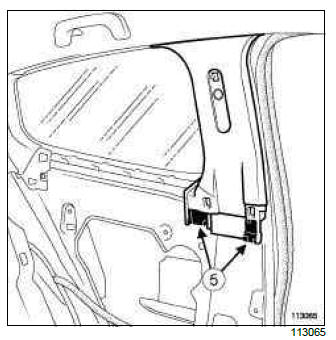

- Refit the covers (5).
II - FINAL OPERATION

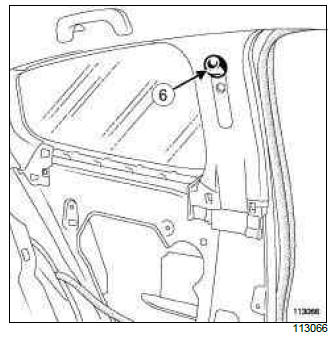

- Refit the height adjustment device (6).
- Refit the seat belt.

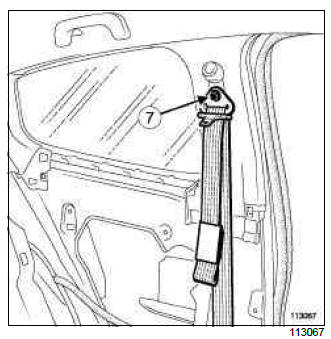

- Tighten to torque the seat belt mounting bolt (21 Nm). (7)
- Refit:
- the rear wing panel lining (see 71A, Body internal trim, Rear panel lining: Removal - Refitting, 71A-32),
- the complete rear bench seat.
