Renault Clio: C-pillar upper trim: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Trim And Upholstery / Body Internal Trim / C-pillar upper trim: Removal - Refitting
C85
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove:
- the rear wing panel lining (see 71A, Body internal trim, Rear panel lining: Removal - Refitting, 71A-32),
- the rear roof drip moulding lining (see 71A, Body internal trim, Side roof rail rear trim: Removal - Refitting, 71A-17),
- the rear quarter panel lining (see 71A, Body internal trim, Quarter panel trim: Removal - Refitting, 71A-27).
II - REFITTING OPERATION FOR PART CONCERNED

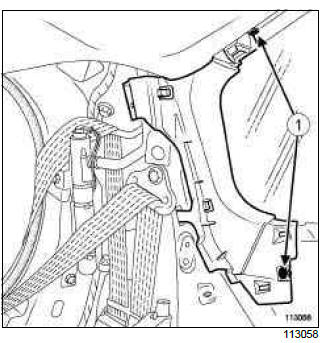

- Remove clips (1) using a pair of unclipping pliers.
- Remove the C-pillar upper trim.
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Refit:
- the C-pillar upper trim,

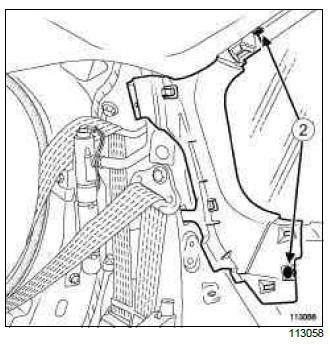

- clips (2).
II - FINAL OPERATION
- Remove:
- the rear wing panel lining (see 71A, Body internal trim, Rear panel lining: Removal - Refitting, 71A-32),
- the rear quarter panel lining (see 71A, Body internal trim, Quarter panel trim: Removal - Refitting, 71A-27),
- the rear roof drip moulding lining (see 71A, Body internal trim, Side roof rail rear trim: Removal - Refitting, 71A-17).
