Renault Clio: Gear selection sensor: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Transmission / Sequential Gearbox / Gear selection sensor: Removal - Refitting
K9K, and JA5
REMOVAL
I - REMOVAL PREPARATION OPERATION
WARNING
To remove the gear selection sensor it is essential that you shift to first gear before removal.
- Remove:
- the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery),
- the battery tray (see Battery tray: Removal - Refitting) (MR 392, 80A, Battery),
- the air filter unit (see Air filter unit: Removal - Refitting) (MR 392, 12A, Fuel mixture).
II - OPERATION FOR REMOVAL OF PART CONCERNED

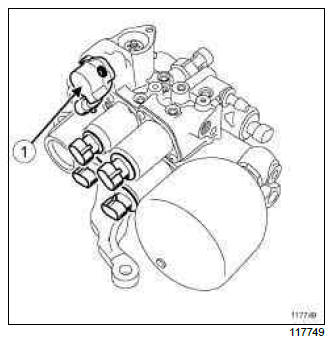

- Disconnect the gear selection sensor connector (1).
- Remove:
- the gear selection sensor bolts,
- the gear selection sensor (1).
REFITTING
I - REFITTING PREPARATIONS OPERATION
- Check that the gear selection sensor is able to rotate freely.
II - REFITTING OPERATION FOR PART CONCERNED
- Refit:
- the gear selection sensor,
- the gear selection sensor bolts.
- Torque tighten the gear selection sensor bolts (4 Nm).
- Connect the gear selection sensor connector.
III - FINAL OPERATION.
- Refit:
- the air filter unit (see Air filter unit: Removal - Refitting) (MR 392, 12A, Fuel mixture),
- the battery tray (see Battery tray: Removal - Refitting) (MR 392, 80A, Battery),
- the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery),
- Carry out the necessary programming (see Fault finding - Replacement of components (MR 394, 21B, Sequential gearbox).
D4F, and JA3
REMOVAL
I - REMOVAL PREPARATION OPERATION
WARNING
To remove the gear selection sensor it is essential that you shift to first gear before removal.
- Remove:
- the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery),
- the battery tray (see Battery tray: Removal - Refitting) (MR 392, 80A, Battery).
II - OPERATION FOR REMOVAL OF PART CONCERNED

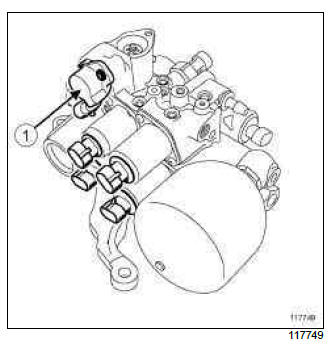

- Disconnect the gear selection sensor connector (1).
- Remove:
- the gear selection sensor bolts,
- the gear selection sensor (1).
REFITTING
I - REFITTING PREPARATIONS OPERATION
- Check that the gear selection sensor is able to rotate freely.
II - REFITTING OPERATION FOR PART CONCERNED
- Refit:
- the gear selection sensor,
- the gear selection sensor bolts.
- Torque tighten the gear selection sensor bolts (4 Nm).
- Connect the gear selection sensor connector.
III - FINAL OPERATION.
- Refit:
- the battery tray (see Battery tray: Removal - Refitting) (MR 392, 80A, Battery),
- the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery).
- Carry out the necessary programming (see Fault finding - Replacement of components (MR 394, 21B, Sequential gearbox).
