Renault Clio: K4J or K4M, and Right-hand Drive

REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove:
- the engine cover,
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (MR 393, 56A, Exterior
equipment),
- the scoop under the scuttle panel grille (see Scoop
under the scuttle panel grille: Removal - Refitting)
(MR 393, 56A, Exterior equipment),
- the non-return valve on the servo,
- the air intake distributor (see Inlet distributor: Removal
- Refitting) (MR 392, 12A, Fuel mixture),
- the master cylinder (see 37A, Mechanical component
controls, Master cylinder: Removal - Refitting, 37A-2),
- the lifting eye bolt,
- the lifting eye,
- the lower cover strip,
- the dashboard side panel.

- Remove:

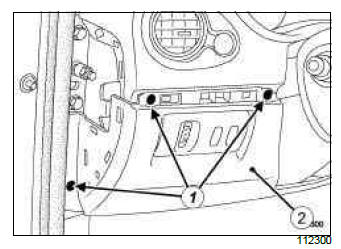

- the bolts (1),
- the lower cover (2), disconnecting the various connectors.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

- Remove:

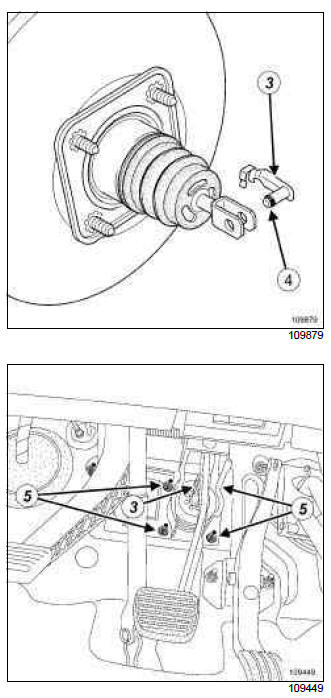

- the double safety connecting shaft (3) from between
the brake servo pushrod and the brake pedal,
and, after tilting the connecting shaft upwards,
move ring (4) using a flat-blade screwdriver.
- the brake servo nuts (5),
- the brake servo.
REFITTING
I - REFITTING PREPARATIONS OPERATION

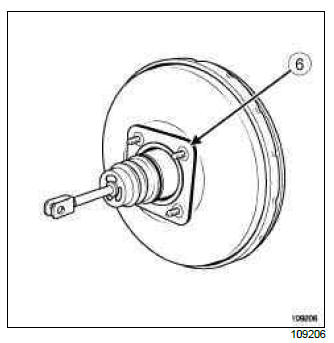

- Check that the brake servo seal (6) is present; replace
the seal if it is faulty.
- The shaft connecting the brake servo pushrod and
the brake pedal must be replaced every time it is removed.

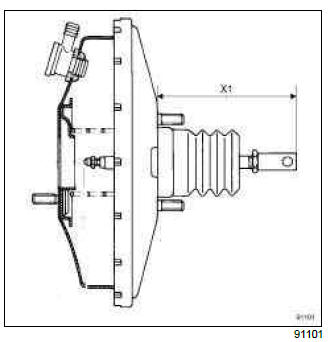

- Before refitting, check that the dimension: (X1) =
128 mm.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the brake servo,
- the brake servo nuts.
- The shaft connecting the brake servo pushrod and
the brake pedal must be refitted from right to left,
and from top to bottom.
- Torque tighten the brake servo nuts (21 Nm).
III - FINAL OPERATION.
- Refit:
- the lifting eye bolt,
- the lifting eye,
- the master cylinder (see 37A, Mechanical component
controls, Master cylinder: Removal - Refitting, 37A-2),
- the non-return valve on the servo,
- the air intake distributor (see Inlet distributor: Removal
- Refitting) (MR 392, 12A, Fuel mixture),
- the scoop under the scuttle panel grille (see Scoop
under the scuttle panel grille: Removal - Refitting)
(MR 393, 56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (MR 393, 56A, Exterior
equipment),
- the engine cover.
- Check that the connecting shaft between the brake
servo pushrod and the brake pedal is locked in
place.
- Bleed the brake circuit (see 30A, General information,
Braking circuit: Bleed, 30A-4).
- Adjust the brake light switch (see 37A, Mechanical
component controls, Brake pedal switch: Removal
- Refitting, 37A-79).
- Refit:
- the lower cover and connect the various connectors,
- the lower cover bolts,
- the dashboard side panel,
- the lower cover strip,
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
