Renault Clio: Pre-postheating unit: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Engine And Peripherals / Preheating / Pre-postheating unit: Removal - Refitting
K9K
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove:
- the battery (see Battery: Removal - Refitting),
- the battery tray (see Battery tray: Removal - Refitting) (MR 392, 80A, Battery).
II - OPERATION FOR REMOVAL OF PART CONCERNED

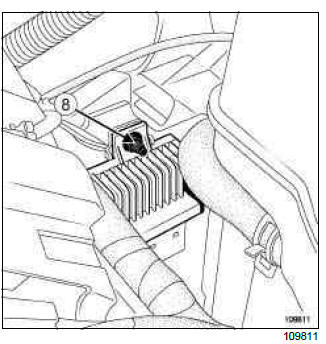

- Remove the pre-postheating unit mounting bolt (8).

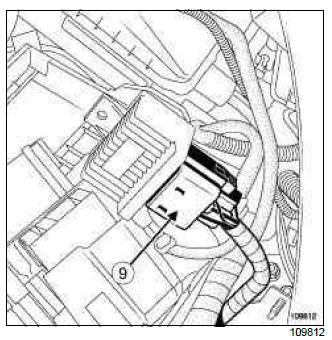

- Disconnect the pre-postheating unit connector (9).
- Remove the pre-postheating unit.
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Connect the pre-postheating unit connector.
- Refit the pre-postheating unit.
- Tighten to torque the pre-postheating unit mounting nut (9 Nm).
II - FINAL OPERATION.
- Refit the battery (see Battery: Removal - Refitting)
