Renault Clio: Reversing camera
Operation

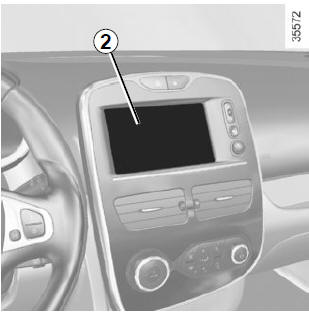

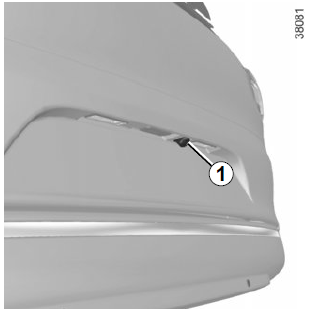

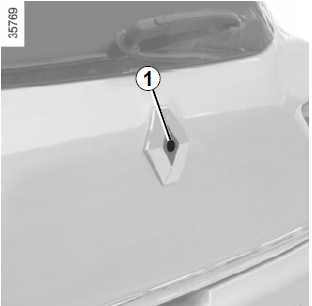

Moving into reverse gear, the 1 camera (located on the tailgate on five-seater versions or near the number plate lights on estate versions) provides a view of the area behind the vehicle on the 2 touchscreen. Depending on the vehicle, this may be accompanied by a moving guide line or a static guide line.
Note: make sure that the reversing camera is not obscured (by dirt, mud, snow, etc.).
Note: depending on the vehicle, certain settings can be adjusted from the 2 touchscreen. Refer to the handbook for the equipment.
| This function is an additional aid. It cannot, therefore, under any
circumstances
replace the vigilance or the responsibility of the driver. The driver should always pay attention to sudden incidents during driving: always ensure that there are no moving obstacles (such as a child, animal, pram, bicycle, etc.) or small, narrow objects such as stones or posts in your path when manoeuvring. |
Dynamic gauge 3 (depending on the vehicle)
This is shown in blue on screen 2. It indicates the vehicle trajectory according to the position of the steering wheel.
Static guide line 4: The fixed clearance gauge comprises coloured markers A, B and C, indicating the distance behind the vehicle:
- A (red) approximately 30 centimetres from the vehicle;
- B (yellow) approximately 70 centimetres from the vehicle;
- C (green) approximately 150 centimetres from the vehicle.
This gauge remains fixed and indicates the vehicle trajectory if the wheels are in line with the vehicle.
This system is initially used with the aid of several gauges (mobile for trajectory and fixed for distance). When the red zone is reached, use the bumper image to stop accurately.
| The screen shows a reverse image. The frames are a representation projected onto flat ground; this information must not be taken into account when superimposed on a vertical object or an object on the ground. Objects which appear on the edge of the screen may be deformed. In very bright light (snow, vehicle in sunshine etc.), the camera vision may be adversely affected. If the boot is open or poorly closed, the message “BOOT OPEN” appears and, depending on the vehicle, the camera display disappears. |
